| General information |
|---|

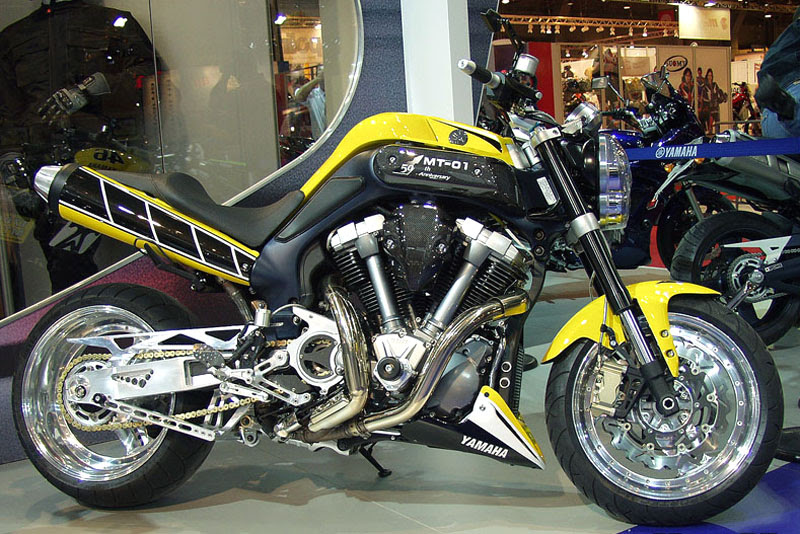

| Model: | Yamaha MT-01 |
| Year: | 2009 |
| Category: | Sport |
| Rating: | 69.1 out of 100. Show full rating and compare with other bikes |
| Safety: | See our safety campaign with the high safety rated bikes in this category. |
| Engine and transmission |
|---|
| Displacement: | 1670.00 ccm (101.90 cubic inches) |
| Engine type: | V2 |
| Stroke: | 4 |
| Power: | 88.90 HP (64.9 kW)) @ 4750 RPM |
| Torque: | 150.30 Nm (15.3 kgf-m or 110.9 ft.lbs) @ 3750 RPM |
| Compression: | 8.4:1 |
| Bore x stroke: | 97.0 x 113.0 mm (3.8 x 4.4 inches) |
| Fuel system: | Injection. Electronic Fuel Injection |
| Fuel control: | OHV |
| Ignition: | TCI |
| Starter: | Electric |
| Lubrication system: | Dry sump |
| Cooling system: | Air |
| Gearbox: | 5-speed |
Transmission type
final drive: | Chain |
| Clutch: | Wet, multiple-disc |
| Physical measures |
|---|
| Weight incl. oil, gas, etc: | 265.0 kg (584.2 pounds) |
| Seat height: | 825 mm (32.5 inches) If adjustable, lowest setting. |
| Overall height: | 1,105 mm (43.5 inches) |
| Overall length: | 2,185 mm (86.0 inches) |
| Overall width: | 800 mm (31.5 inches) |
| Ground clearance: | 145 mm (5.7 inches) |
| Wheelbase: | 1,525 mm (60.0 inches) |
| Chassis and dimensions |
|---|
| Frame type: | Alu CF-die cast, double cradle |
| Trail: | 103 mm (4.1 inches) |
| Front suspension: | Telescopic forks |
| Front suspension travel: | 120 mm (4.7 inches) |
| Rear suspension: | Swing arm (link suspension) |
| Rear suspension travel: | 117 mm (4.6 inches) |
| Front tyre dimensions: | 120/70-ZR17 |
| Rear tyre dimensions: | 190/50-ZR17 |
| Front brakes: | Double disc |
| Front brakes diameter: | 310 mm (12.2 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 267 mm (10.5 inches) |
| Speed and acceleration |
|---|
| Other specifications |
|---|
| Fuel capacity: | 15.00 litres (3.96 gallons) |
| Oil capacity: | 5.00 litres (0.33 quarts) |
| Color options: | Midnight black, Graphite |
